OLfix - Office Outlook repair tool | Freeware for Office Outlook

Wintotal - Award!





Editorship valuation of “WinTotal - The Windows Portal”: Outstanding!





OLfix is a cost free tool which repairs Outlook profiles and more
OLfix combines some tools for repairing common things like the profile, contact links and features, for example calling the internal Outlook repair command line switches with a click of a button. Also some hidden settings can be set for example reminders in different folders.

Highlights:

  • Repairs Outlook profiles

  • Repairs Outlook contact links

  • Extends reminder folders

  • Enables Outlook address book in Outlook express and other programs

  • Searches of dupes in Outlook

System requirements:
All windows versions and any version of Outlook. Outlook 97 - Outlook 2013, 32 or 64-bit.



OLfix: Download Information



OLfix is Windows 8 compatible













OLfix functions: 1. Repair Outlook profiles

Outlook sometimes has problems with the profiles, if you for example delete a data file while Outlook is running, Outlook sometimes forgets to delete some registry keys. At next start Outlook will try to load the deleted store provider but will fail because some of the keys are deleted and some not.

This gives you sometimes double personal folders, double OLfolders, double Exchange folders, slow Outlook start and errors on startup.

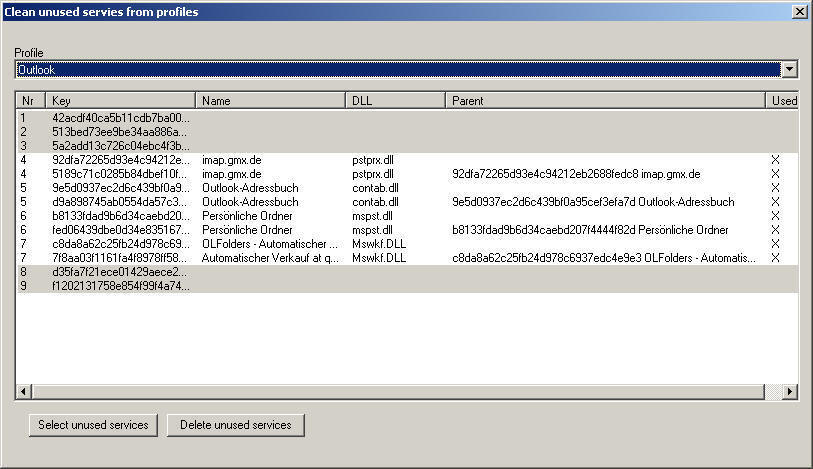

Open repair profiles and select the profile you want to repair. OLFix will display all registry entries for this profile. Some of them are pre-selected, the pre-selected entries usually can be deleted.

Most data files require two registry keys, one main key and one detail key. Exchange usually has one more than two keys, the main key for Exchange and detail keys for your email accounts, shared folders, personal folders, delegates etc. If you find PST files, OLfolders files etc. with only one key or with more than two keys, they usually are damaged.





Enlarge picture Click to enlarge / Back - click on your Browser "Back" button.



It seems that Outlook loads deleted services at startup this:

Slows down the Outlook start

Shows data files which are already deleted, but you can not close them because the main key is no longer present.

Because OLfolders gives the same store entry ID for each connection to the same file, it does not like the same data file be present many times. If you for example have 30 references to the same file and the last one which Outlook tries to load does not work because some keys are already deleted or you have the wrong user name or password, you only will see a file which is not opening in Outlook.

Hints, Warnings

OLfix is using undocumented registry keys, usually it works, in some cases it may damage your Outlook profile. If this happens re-create your Outlook profile in control panel/mail. You may copy the profile before running OLfix.

In most cases where you run OLfix, re-creating the profile was the only option anyway.



2. Repair contact links

In Outlook, elements can contain links to contacts, Outlook stores the entry ID of the contact. If you export the file into a new one, the links will still point to the old file, if that is not present, the contact link no longer works. There may be other opportunities to damage contact links. Outlook also stores some other information about the contact, which allows us to find the contact and repair the link.

Use this function, if your contact links are not working any more or after exporting your .pst file.

Hints, Warnings

Repair contacts is using undocumented data structures. It is a good idea to back up your data before using this function.

3. Extend reminders folders

Outlook displays reminders only in Inbox, Calendar, Contacts and Tasks. If you want to have reminders in other folders, for example in sub folders of calendar, in other email folders, you can use this function.

Though there is no interface in Outlook to do this, the functions are document MAPI functions, this function is not using any undocumented things.



4. Delete search folders

If Outlook crashes while you have a search folder open or any search running (including activities) it will not delete the search folder it has created for this search. After 99 search folders, it will not create new ones. Search Folders also keep searching your data file until they are deleted, so each search folder will take some computing time.

Please do not remove the standard search folders like Reminders.





5. Change Message class

A message class defines which Outlook form is used to display data. For example the contact form is named IPM.Contact. If you created a new contact form for your customers, this may be named as IPM.Contact.Customer. Now after creating a new form, the old contacts will still open with old contact form until you change the message class.

It is easy to create a new contact (or any other) form in Outlook, you do not even need to know anything about VB scripting or programming until you want to do some very special things.

  1. Open the contact folder

  2. Create a new contact

  3. Select tools/forms/Modify to start designing the contact.

  4. Choose a free tab sheet (for example S.2)

  5. At the Actions menu, rename the tab sheet

  6. In the field window, create a new field, for example customer number

  7. Move the field to the new page.

  8. A new page with only one field is somewhat boarding, but you can add more fields or for example a picture. Find the toolbox window and add an element from type Display, now right click and select extended properties. You will find a field where to choose the picture from.

  9. Save the contact using tools/forms/publish
    This name is the message class, for example IPM.Contact.Customer

  10. You do not need to save your empty form, it has been published (but before closing it, try if you can instanciate a new element of this).

  11. To create a new instance of your new form, click in Actions/New: Customer, this will open a new empty form with your additional field.

  12. In order to see the new field in all existing contacts, use OLfix change message class on the contact folder and modify IPM.Contact into IPM.Contact.Customer.

  13. If you like to edit the form definition, start by creating a new element.

  14. Use your form

If you work in a network, all workstations will now have access to the new form.

Hint: If you have many versions of Outlook, edit the form definition on the oldest one, newer Outlook can read the old form definition, if older Outlooks can read a new form definition, nobody knows.



6. Find duplicates

Innovative duplicates finder for Outlook.

The duplicates finder searches for different kinds of duplicates in a file or in all files. It is always searching in all folders available and all kinds of objects (contacts, emails, tasks) etc.

OLfix can find three different kinds of duplicates:

  • Elements which are a copy of each other.
    You copied a contact to a different folder. OLfix is able to find this contact (this also applies to all other elements).

  • Contacts by email
    Finds all contacts with the same email address

  • Emails by Message ID
    Finds all emails which have been received more than once or have been copied.

We can not find elements which are equal by field compare, for example if you entered the same contact more than once, probably written a bit different.

After the search has been finished, you will see a list of duplicate elements, which can be marked as duplicated and then be displayed in a special Outlook search folder will combine all elements of all folders and allow you to easily open and delete the duplicate entries. We currently do not delete duplicates, because usually if you have duplicate elements, both of them are different, for example if one instance has been updated. On each pair, you must find out by yourself, which of the copies you want to keep and which should be deleted.






Picture 1: Selection of files





You have two options with duplicates:

1. Mark all duplicates with a flag so that they appear in our search folders

2. Automatically move the items to a sub folder



1. If you mark your duplicates, nothing will be moved or deleted, however all duplicate elements will appear in a special search folder und "OLFix duplicates" in your tree. You are now able to examine all duplicates and manually delete each item. If you delete the item in the search folder, it gets deleted at the original position, so please do not delete all items in the search folder, instead move the search folder to the deleted items folder if done.



2. If you choose to move the elements, OLfix will create a structure under "OLfix duplicates" and move all elements from the original position to that folder. Below that folder it will create the same structure as you have in your Outlook. Because this operation can not be undone, please create create a backup of your data before you are using this function.



You can find the position of your PST file by file/data files in the property window. If you are using Exchange, we recommend exporting the data to a PST file.



Cautions:

  • We will not delete any data, but we will move elements from one folder to a different folder. You may not be able to find your elements at the previous position.

  • OLfix can not find out, which of the copies you wanted to keep and which of the copies you wanted to delete. Usually you must look at the results and move some elements back.

  • Use this function at your own risk!

  • Please create a backup of your data before staring automatic movement.

  • Instead of deleting the duplicates we moved to the folder, we recommend moving them to an archive file. You may discover later, that you made for example a comment in an older copy of a contact.

Picture 2: Displaying duplicates



- Enlarge picture - Click to enlarge / Back - click on your Browser "Back" button.



The duplicate remover will only mark duplicate messages, not delete them. you must actually do it. There are other duplicate removers, which do it all automatically:

  • Cost free: Install our product QSyncrchonization and go to maintainance in the qsync tab of the properties of any folder, there is a function for removing duplicates, this will keep working even after expire date. It finds duplicates only by ID.

  • Topalt.com deduper.

  • Outlook Duplicate items remover



7. Automatically find and delete Extend.dat

Outlook nearly always forgets to update its cache for extensions, which is stored in extend.dat if an extension has been de-installed. You get an error message about a missing DLL after de-installing any application. Deleting extend.dat resolves this problem, the cache will be re-built with the current settings from the registry and the add-in directory.



If you still get an error message, try to find the reference here:

c:\program files\microsoft\office\<your office version>\add-ins
 You should find an .ecf for the deleted extension, this can be deleted



Registry: HKLM\Software\Microsoft\Exchange\Client\Extensions and HKCU\Software\Microsoft\Exchange\Client\Extensions



You should find a registry key here naming the name and the DLL.

7. File extensions

Sets or re-sets blocked file extensions. Outlook does not show or does not allow opening certain files, this menu item can modify this

8. Outlook repair

Outlook can be started with some command line arguments, however this not documented in the manuals but can be found somewhere at the Microsoft technet sites and various other sites. OLFix allows starting repair options without typing



/CleanFreeBusy. Resets the free/busy

/Cleanreminders. Re-Creates the reminders folder

/Cleanviews. Re-Creates views

/CheckClient.  Checks if Outlook is standard mail client

/ResetFolders. Re-Creates the default folders

/CleanSchedPlus. Recovers calendar entries

/Safe. Start in safe mode.

/Cleanpst. In Internet-Mode: Creates a new profile with PST file

/Cleanfinders. Re-Creates search folders at the Exchange server

9. CALL scanpst, Repair the inbox

Outlook has a built in inbox repair tool: SCANPST, however in each version of Outlook, depending on the windows version and languages of Outlook and Windows, the file is in a different directory.  OLFix tries to find SCANPST.EXE, calls it, enters the file name and waits for the file to be checked, if there is an error, it presses automatically the repair function.

If you do not wisth to call it automatically, just disable the button and let OLfix start SCANPST for you with the file name in the clipboard.



If OLfix is unable to find SCANPST.EXE, please copy it to the program directory of OLfix.

10. Secret options



Turns secret options on or off.

  • Use Query Editor

    Enables the hidden query editor in Outlook or hides it.You find the query editor in the last tab in advanced search.

  • Use Outlook Adressbook as Windows Adress book
    In Windows prior to Windows 7, the windows Addressbook was able to read the Outlook address book, this way Outlook Express and many other sofware where able to read and modify the Outlook data without even knowing that the data comes from Outlook

  • Modify shortcuts

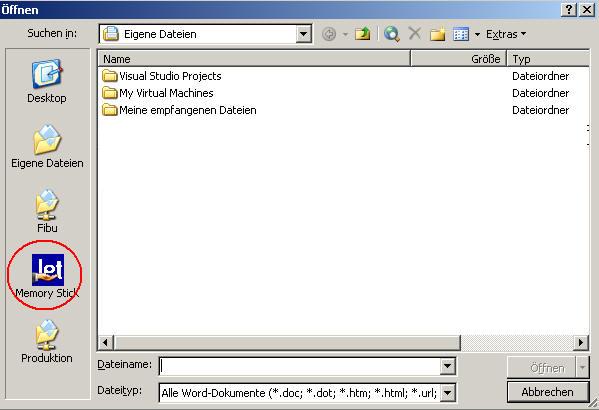

    The file open menu can display different shortcuts in the right button pane, for example you can set up your memory stick here or hide some of the default folders.

    In order to do so, you eventually must enter the office version manually, Outlook 2000 is Office 9, 2002 is Office 10 etc. Each office version may have different settings.
